Series 400-S
micro Slam latch
Electronic lock with detachable actuator
Overview
The S400-S is a small detachable slam lock designed for cabinets and kiosks that need high-performing access control but have limited internal space.
Trigger remotely when you need to

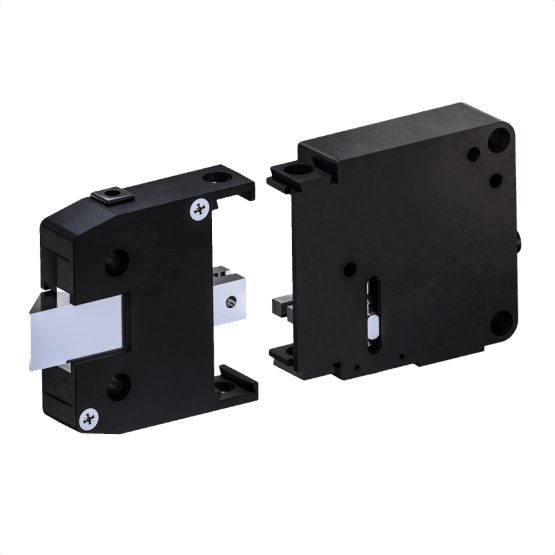

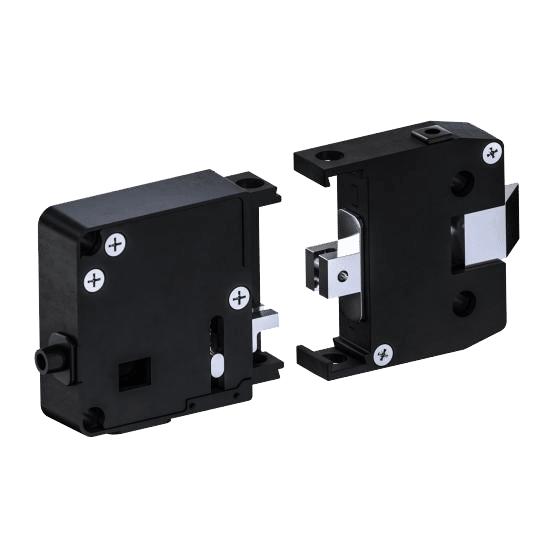

Made in two parts: A latch and a detachable actuator, you can install as one piece or two. Hide the actuator in the roof, recess or service panel, and connect to the slam latch via Bowden cable. The actuator system comes with a built-in override for safety and peace-of-mind.
Easy installation options
Choose from two types of latch, a slam latch or rotary latch (S400-R), which can be fixed to the cabinet door or its frame. The latch’s symmetrical design and universal installation means you no longer need a left or right-hand version.
Features
- Easy-to-install. Universal fitting options
- Two part, lock and detachable actuator
- Trigger latch remotely via Bowden cable
- Lock and optional door monitoring
- Integrates with access control systems
- 12 V dc available
- Fitted with a concealed override
- Two-year warranty
How it works
Security
Cycle rating: 50,000
Glass-reinforced plastic housing
Built-in lock and door monitoring
EMC interference tested
Operating temp: -20°C to +70°C
Mechanical Override
Technical information
